Operating Modes and Register Banking

ARM Cortex-M processors support two main modes of operation to separate application-level code from system-level (privileged) operations. This is crucial for building safe and secure embedded systems.

1. Thread Mode

• Default execution mode

• Used by:

  • Application-level code

  • main() function and background tasks

• Can run in either:

  • Privileged mode (full access)

  • Unprivileged mode (restricted access)

2. Handler Mode

• Entered automatically when an exception or interrupt occurs

• Always runs in Privileged mode

• Used by:

  • Interrupt Service Routines (ISRs)

  • Fault handlers (e.g. HardFault, MemManage, etc.)

  • System-level operations (e.g. PendSV, SysTick)

---

Why Separate Modes?

Certain instructions like disabling interrupts, accessing system control registers, or performing privileged memory operations can compromise system stability or break critical services if misused.

By separating modes:

• We protect the kernel/system from faulty or malicious application code

• We enforce privilege levels, supporting a minimal security boundary even in bare-metal systems

---

Privilege Levels

Privilege Level	Description	Allowed Mode(s)
Privileged	Full access to all instructions, system control space, and memory regions	Thread & Handler
Unprivileged	Limited access. Cannot disable interrupts or access system control	Thread only

Unprivileged code is typically application-level logic, while the kernel, ISRs, and system services run as privileged.

---

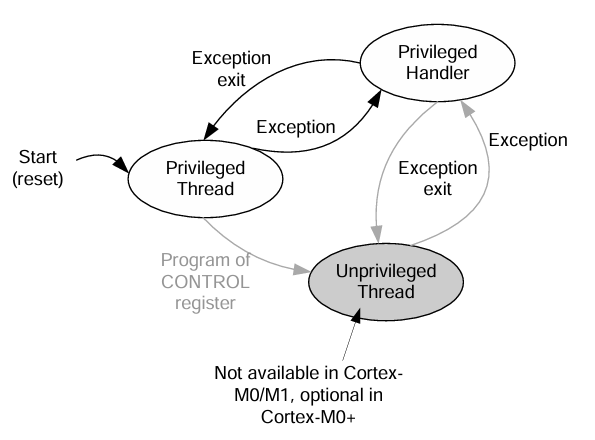

Mode Switching

• The CPU starts in Thread Mode, running user code.

• When an interrupt or exception occurs:

  • The core automatically switches to Handler Mode

  • Saves context to the stack

  • Executes the ISR or handler

• Upon BX LR or return-from-exception:

  • The CPU restores context and switches back to Thread Mode

---

Register Banking

What is Register Banking?

Register banking is a technique where certain registers are swapped or replaced depending on the mode.
In Cortex-M, the only banked register is the Stack Pointer (SP).

Register	Banked?	Notes
R0–R12	❌	Shared across modes
R13 (SP)	✅	Separate for each stack mode
R14–R15	❌	LR (link register) and PC shared

---

The Two Stacks: MSP and PSP

ARM Cortex-M has two stack pointers, both pointing to separate stacks in memory:

Stack Pointer	Name	Used By
MSP	Main Stack Pointer	Handler Mode + default Thread Mode
PSP	Process Stack Pointer	Thread Mode (if configured)

Why Two Stacks?

• To separate application tasks from system context.
• Prevents corruption of ISR stack space by untrusted or buggy application code.
• Allows an RTOS to:
  • Use PSP for tasks
  • Use MSP for system-level and interrupt handling This structure supports safe preemption, clean context switching, and modular RTOS design.
